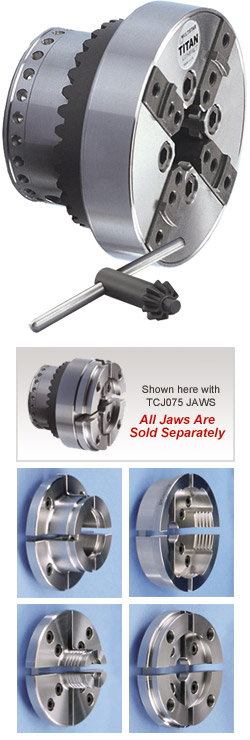

• COMPACT POWER: At only 83mm (33/8”)dia it really lives up to it’s Compact’ name, whilst it’s full size hardened scroll ring (same as a 100mm-4” engineering chuck) means no compromise on holding power, standards of performance or accuracy.

• COMPACT DESIGN: Specially designed to achieve the highest gripping power to size & weight ratio and better work access and reduced lathe bearing loading.

• CONSTRUCTION: Made throughout in ’40 carbon tool steel, with hardened and tempered Jaw Carriers, Operating Scroll Ring, and Key for superior performance and chuck life.

• JAW MOUNTING: Unique 3 mounting hole allows exclusive use of the more robust Cap Head Hexdrive Screws for superior strength and screw life, plus only one size of screw with easy line of sight.

• UNIQUE GUARD: Safer working is ensured by enclosing the jaw slots fully containing the jaw carriers and controlling movement within sensible working limits. The guard also controls jaw carrier positions to make servicing easier and less frequent by protecting against the ingress of debris.

• BUILT IN INDEXING: All Titan Chucks feature 24 indexing holes. This useful facility will benefit you in almost any area of turning from simply holding the chuck steady for hole drilling to advanced decorative work.

• JAW RANGE: The jaw range offers a wide choice of holding styles and options with over 11mm (7/16”+) of movement and full expansion and compression working on all jaws. Also thanks to direct line-of-sight screw access, all jaws can easily be changed using only one size of screw and without any need to remove the Jaw Carriers or worry about which jaw goes to which jaw carrier. NOTE: Jaws are NOT included in the chuck price.

These are the smallest universal jaws in the range and feature a 12mm (1/2”) bore with matching internal dovetails which also provide good square holding on lace bobbin blanks etc. The 25mm (1”) external dovetails provide an excellent expansion hold with good working access, plus the bonus of parallel ribbing for gripping in a bore, ideal for applications such a peppermill or making a quick mount for a bowl in a small offcut, etc.

Their very thick section means a strong, non-flexing hold on a wide range of work whilst providing good projection to allow near work access. The Internal bore and dovetail is 35mm (13/8”) whilst the external dovetail is 55mm (2 ¼”). A matching Faceplate Ring (FPU55) compliments the jaws for first stage work preparation.

The “workhorse” jaws of the range, coping with everything from workplace preparation on a Faceplate Ring, or Screwchuck, to finished product. Their powerful close coupled design means a very positive hold on any timber, making them the ideal choice for a wide range of Bowl and other work on their 75mm (3”) external dovetails or 50mm (2”) internal dovetails.

Powerful spigot gripping jaws at 70mm ( 23/4”) diameter, combined with a 90mm (3 ½”) external dovetail form make these a formidable combination for larger work. Excellent for deep hollow forms and other projecting work where unsupported holding is required. The serrated teeth have been relieved (milled away) to reduce surface resistance and by so doing the effective “bite” into the wood is greatly increased.

250mm (10”) dia provides a larger base for self-made mounts and rim gripping forms, etc. Amply provided for with 20 x M6 threaded holes +12 mounting slots. Brass M6 csk screws are available, plus Plastic Dovetail Bosses (with captive M6 Screws)for direct work mounting.

Open up a wide range of mounting options with these 125mm (5”) dia plates. Designed to take MDF or wooden holding forms for square bowls, flush bowl bases, picture frames, etc. Mounting is amply catered for with a total of twenty M6 threading holes to make any suitable M6 screw. Plastic Dovetail Bosses (with captive M6 Socket screws) for direct work mounting are available plus Brass M6 countersink screws for self-made holding forms.

Faster, lower in cost and more versatile the traditional faceplates, these solid stell rings aend the need to remove the chuck because they mount directly on to the matching jaws in expansion mode.

Faster, lower in cost and more versatile the traditional faceplates, these solid stell rings aend the need to remove the chuck because they mount directly on to the matching jaws in expansion mode.

Faster, lower in cost and more versatile the traditional faceplates, these solid stell rings aend the need to remove the chuck because they mount directly on to the matching jaws in expansion mode.

Dovetail form bosses in Acetyl Copolymer, with pre-fitted M6 Socket Screws for use with TCJ90 Jaws, TCJ125 Plates, and TCJ250 Plates.

An attractively priced 11mm (7/16”) Centre Screw with our unique Variform helix for a ‘rock solid’ hold. Loads direct to TCJ075 and TCJ092 Jaws. Illustration opposite shows the 11mm Centre Screw in TCJ075 Jaws.
